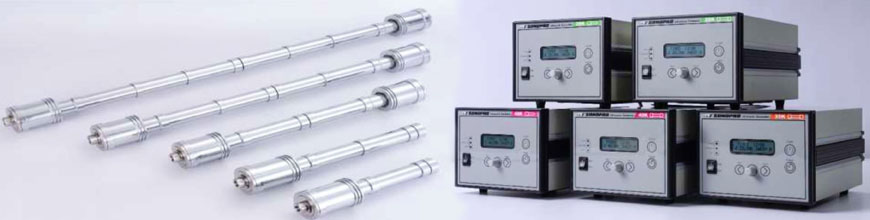

ULTRASONIC TUBULAR TYPE IMMERSIBLE SYSTEM
 Model Tubular Length
(mm)
Diameter
Head / Tube
(mm)
Volume
(Liter)
Acoustic Power Voltage (watt)
Frequency
available (kHz)
Weight
(kg) est
 TTIS-8 330 86 / 51 2 800w 25,30,40 3
 TTIS-12 470 86 / 51 4 1200w 4.2
 TTIS-18 590 86 / 51 5.7 1800w 6
 TTIS-24 840 86 / 51 9 2400w 8
 TTIS-32 1080 86 / 51 12 3200w 9




Comparison:-

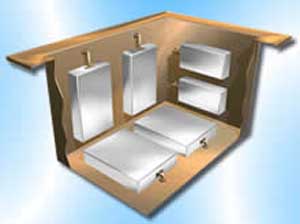

-- Adhesive bonded Immersible transducer --

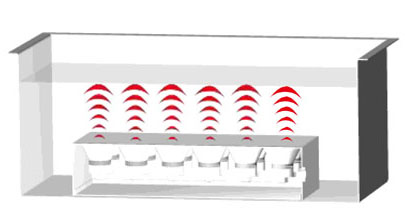

Traditional transducer emit from bottom / side to top with cavitation in single way

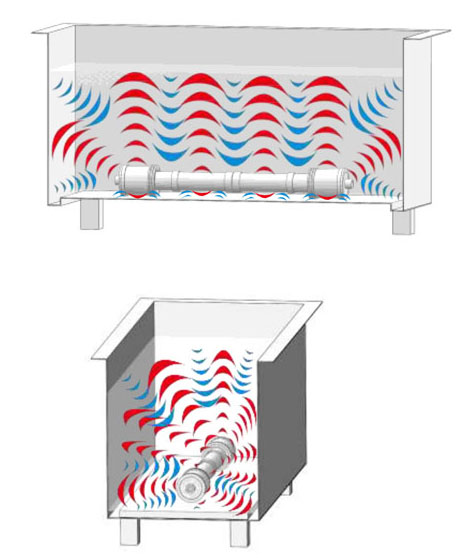

-- Tubular Immersible System --

Tubular transducer emit 360º ultrasonic waves and waves will be refracted when they touch SUS water tank wall which will expand the cavitation and crisscross its directions to make the ultrasonic full of intensive in the water.

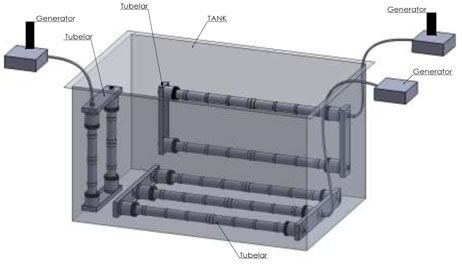

They are normally mounted at the bottom of the tank. Tubulars can be mounted in any direction, horizontally, vertically and even in an inclined position, as long as they are immersed in the water.
