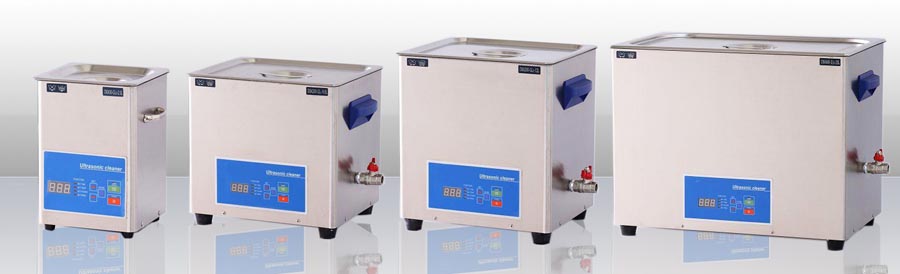

BENCH-TOP ULTRASONIC CLEANER  |
 |
 |
 |
| Model |
External
Dim.
(mm) |
Internal
Dim.
(mm) |
Volume
(Liter) |
Voltage
(watt)
- Adj* |
Frequency
(kHz) - Adj* |
Timer
Range
(minute) |
Heating
Range |
Weight
(kg) est |
| DUSA-50 |
175×165×250 |
150×137×150 |
2 |
30 - 50w |
28
& 40 |
0
~ 60 |
0
~ 80ºc |
3 |
| DUSA-100 |
265×165×290 |
235×135×150 |
4 |
60 - 100w |
4.2 |
| DUSA-150 |
325×175×290 |
300×153×150 |
5.7 |
90 - 150w |
6 |
| DUSA-200a |
325×265×290 |
300×240×150 |
9 |
120 - 200w |
8 |
| DUSA-200b |
325×265×340 |
300×240×200 |
12 |
120 - 200w |
9 |
| DUSA-300 |
354×325×400 |
330×300×200 |
16 |
180 - 300w |
11 |
| DUSA-600 |
530×330×420 |
500×300×200 |
25 |
360 - 600w |
18 |
|
|
| |
Others Function / Specification:- |
|
- Digital Timer
Range : 0 – 60 min (0 = continues)
- Digital Heating Range : 0 - 80ºC / 32 -
176ºF
- Frequency : 28 (Low) ~ 40 (High) kHz (adjustable)
- Power Supply : 220~240v AC |
- Internal Tank
Material : SUS304 stainless steel
- Included Cover & Basket
- Internal Tank Liquid / Water Level Marked
- Digital LCD Display with Multi-function control
|
|
|
 |
| |

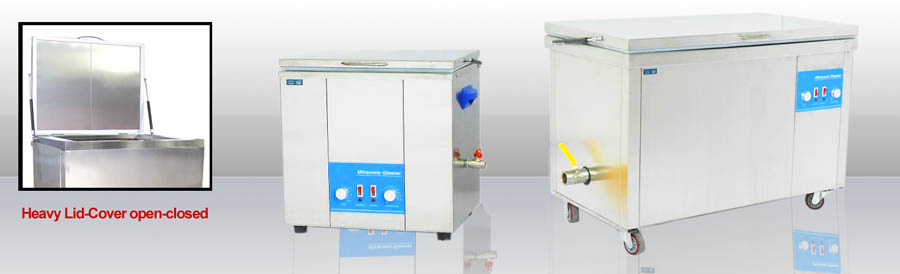

| HEAVY-DUTY INDUSTRIAL ULTRASONIC CLEANER |
|
| |
| |
|
|

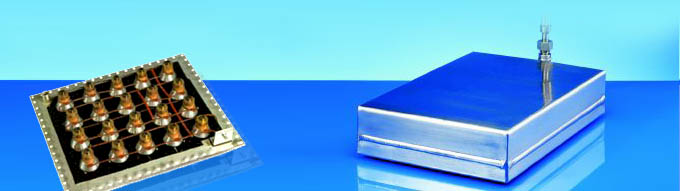

IMMERSION TYPE ULTRASONIC CLEANING
SYSTEM |
 |
|
| Designed for installation in new
or existing cleaning tanks to improve the speed and
effectiveness of washing, rinsing and other liquid
processed. Single or multimodule installations can
be custom designed for tanks from five gallons to
several thousand gallons capacity!
** Available 300, 600, 900, 1200, 1500, 1800watt (frequency
: 28/40kHz or up max to 200kHz) |
| |
|
IMMERSIBER TRANSDUCER General Features:- |
- SUS
304 or 316
- Low Acoustical noise emissiom
- All units with pressure-tested
- Power Supply : 220~240v AC |
- External surface
protected with hard-chromium plating
- Uniform (3D) space of ultrasonic activity distribution
- Meets CSA, UL, ROhS requirements
- Operating Frequency: 25, 28, 40, 80 & 120kHz
|
|
| |
|
POWER GENERATOR General Features:- |
- High-Efficiency
circuit designed
- Programmed sweeping frequency
- Protection from Over-Voltage,Over-Current &
Driver fault
- Modular designed for maintenace user-friendly |
- Bright LED Digital
Display
- Compact designed in aluminium cabinet
- User-adjustablepower & frequency controls
- Line / Load regulation compensates for liquid
level , temperature changes & tank loading
|
|
| |
| |
| ULTRASONIC APPLICATION GUIDE
|
 |
 |
 |
 |
Heavy Parts, Big Tanks
Usually side mounted
opposing
immersible transducers |
Most Ultrasonic
cleaning applications,
95% of the applications |
Buffed Soft Metal
Components -
aluminum, brass nickel
For delicate components |
Disk Drive, Media
Components |
|
|
-- For custom-made Immersible Transducer,
kindly provide the Dimension (mm) LxWxH
-- Flexible Stainless Steel Hose - standard size, Diameter=15mm,
length= 3 feet (optional) |
|
| |
| |
|
|
|
|
